How to Measure and Specify Custom Steel Security Doors for OEM Manufacturing

This guide by PHIPULO outlines key standards for sourcing custom OEM steel security doors with zero error. It details a precise field measurement protocol, requiring three-point measurements for rough opening width and height—taking the smallest dimension—along with wall thickness and a 10–15mm clearance gap. Door handing must always be determined from the exterior. Additionally, buyers must submit an engineering checklist covering exact dimensions, steel thickness, infill material, surface finish, and opening direction. Backed by a 50,000 m² facility and international certifications, PHIPULO provides precision custom manufacturing for global importers.

For overseas importers, real estate developers, and building material distributors, sourcing custom steel security doors directly from an OEM manufacturer is one of the most cost-effective ways to scale a supply chain. However, custom door manufacturing leaves zero room for error. A discrepancy of just 5 millimeters in frame depth or an incorrectly specified hinge direction can lead to costly job-site modifications, delayed installation timelines, and damaged buyer trust.

As an established manufacturer operating out of China’s hardware capital—Yongkang, Zhejiang—PHIPULO (Yongkang Phipulo Smart Home Co., Ltd.) operates a 50,000 m² modern manufacturing facility equipped with automated precision stamping and laser-cutting lines. With over 20 years of export experience and a workforce of over 300 skilled professionals, we have streamlined the custom OEM order process.

This guide provides a comprehensive, step-by-step framework to accurately measure, specify, and submit custom steel door orders for overseas manufacturing

  1. Step-by-Step Field Measurement Guide

Before submitting engineering drawings to your OEM manufacturing partner, technical field measurements must be conducted with rigorous precision on-site[cite: 1]. As a standard engineering protocol, always record dimensions at three distinct points (top, middle, and bottom for width; left, center, and right for height) and use the smallest measurement to ensure the door frame smoothly integrates into the rough structural opening

Key Measurements Required:

Rough Opening Width (ROW): Measure the distance between the bare structural studs/brickwork across the top, middle, and bottom.

Rough Opening Height (ROH): Measure from the finished floor level to the underside of the lintel at the left, center, and right.

Wall Thickness (Frame Depth): Measure the total thickness of the finished wall, including drywall, plaster, or exterior cladding.

Installation Clearance: Standard engineering practice requires a 10mm to 15mm fitting gap between the outer door frame and the rough wall opening to allow for shimming, leveling, and polyurethane foam insulation.

  1. Defining Essential Technical Specifications for OEM Production

When placing bulk custom OEM orders, submitting a complete technical specification sheet enables factory engineers to program CNC machinery accurately to comply with your regional building standards and market preferences.

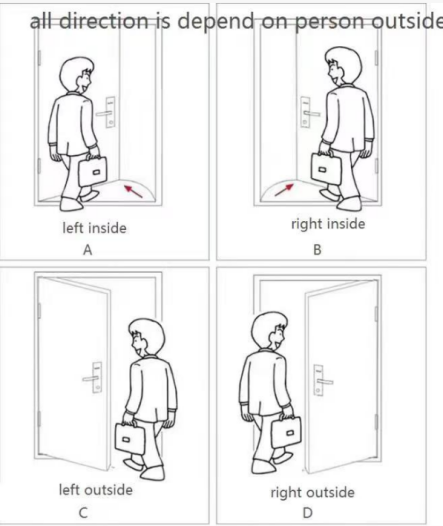

Accurately determining the door handing and opening direction prevents critical on-site installation failures. Crucial Rule: Handing is always determined from the exterior/outside of the building looking in

·  Left Inside (A): Hinges located on the left side; door leaf pushes inward toward the interior.

· Right Inside (B): Hinges located on the right side; door leaf pushes inward toward the interior.

· Left Outside (C): Hinges located on the left side; door leaf pulls outward toward the exterior.

· Right Outside (D): Hinges located on the right side; door leaf pulls outward toward the exterior.

3.Quality Inspection and OEM Order Checklist

To streamline communication with our sales and engineering team, review this final checklist before finalizing your engineering drawings:

[1] Exact Clear Opening & Frame Dimensions: Confirmed using metric (mm) measurements.

[2] Steel Thickness Specifications: Door leaf skin and frame gauge verified.

[3] Infill Material Selected: Honeycomb, Rock wool

[4] Surface Finish Code: RAL color code or wood grain transfer pattern selected.

[5] Opening Direction: Inward/Outward and Left/Right handing established.

[6] Packaging Standards:Export-grade reinforced cartons with corner protection specified

Partnering with PPD DOORS for Your Custom OEM Projects

Backed by a 50,000 m² modern manufacturing footprint and international certifications including ISO9001, CE, and SGS, PHIPULO provides end-to-end custom production solutions for global wholesale distributors, developers, and hardware importers. Whether you require high-volume residential entry doors, commercial fire-rated doors, or integrated smart lock security systems, our engineering team works directly with your CAD drawings to deliver millimeter precision at scale.

Ready to start your next custom door project? Contact our sales engineering team today to submit your project specifications and receive a direct factory quote
